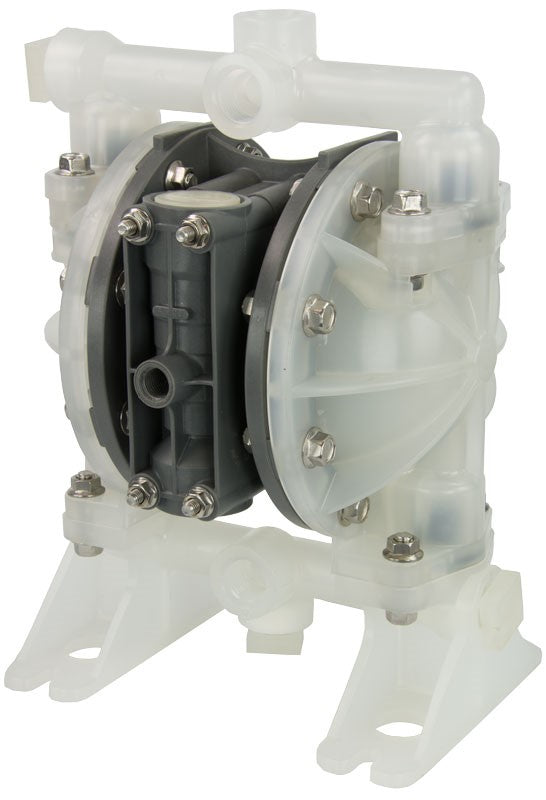

Yamada G15 Series, 15.8 GPM Double Diaphragm Pump, 1/2" Porting, Polypropylene Housing

G15 series pumps are perfect for spraying and dispensing applications, particularly when on and off cycling reliability is critical.  Utilizing newly designed "S-Spool", the G15 uses up to 30% less air than the competition.  Maintenance friendly with fewer parts.

15.8 GPM Max Flow Rate, Corrosion Resistant PPG Housing, 1/2" Intake & Discharge Ports, 1/4" Air Inlet, 3/8" Air Exhaust with included silencer.  Air supply requirement 20-100 PSI.

When ordering, select options below:

• Buna-N Diaphragms w/ Buna-N Valving (petroleum based & similar fluids, abrasion resistance, 10F to 180F)

• Hytrel Diaphragms w/ Buna-N Valving (general purpose for non-corrosive abrasive applications, FDA compliant material. 0F to 248F)

• Santoprene Diaphragms w/Santoprene & EPDM Valving (acids or caustics with high flex life, 10F to 180F)

• PTFE Diaphragms w/ PTFE Valving (excellent for pumping highly aggressive fluids, including solvents, 40F to 212F)

Yamada Warranty Information

Accessories:

• Drum Pump Kit
• G15 Repair Kits
