KB Electronics, 1/2 - 2 HP KBDA-27D Digital Variable Frequency Drive, Input 115/230V, Output 230V 3P, #9543 Gray

KBDA-27D Digital Drive with CSP*

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.

Primary Features:
Horsepower 1/2 to 2 HP
1Ø Input 115/230 VAC, 50/60 Hz
3Ø Output 230 VAC
200% Starting Torque

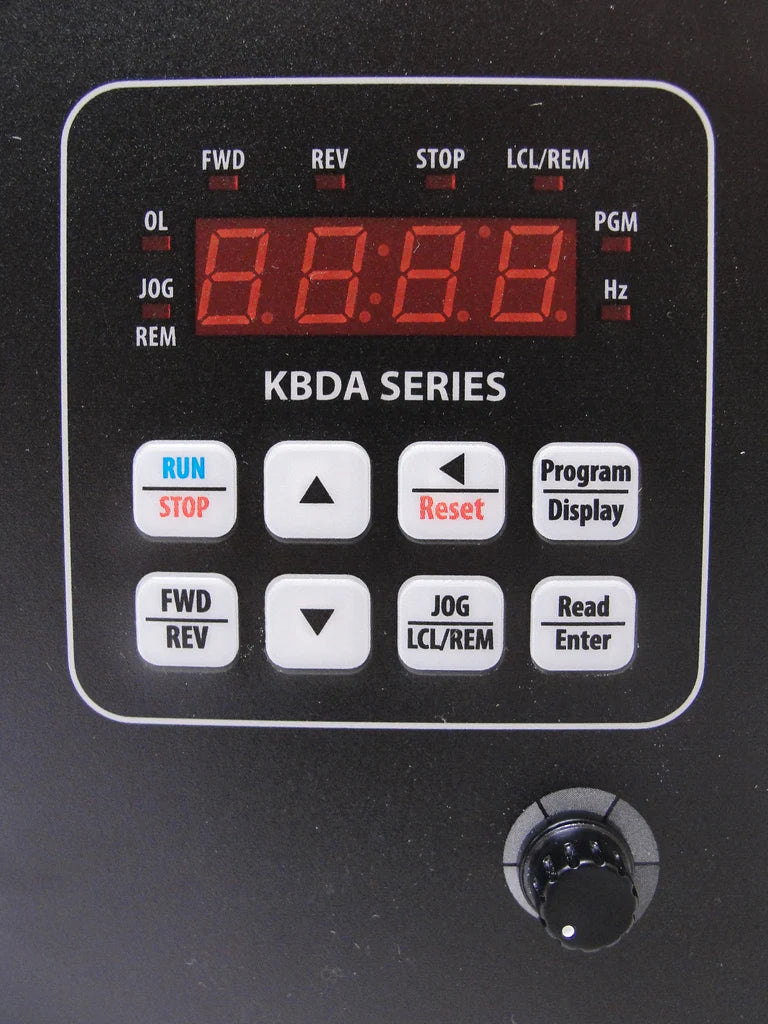

Digital Display with LED Status Indicators

Additional Features:
Sensorless Flux Vector Control
Electronic Inrush Current Limit (EICLTM) Protection
Run/Fault Relay Output Contacts
Jog-Local Remote
Built-in Potentiometer
Holding Torque at Zero Speed in "Stop" mode
Undervoltage and Overvoltage Protection
Short Circuit Protection, phase to phase
Ride-Through momentary power loss
Regeneration eliminates tripping

Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.
