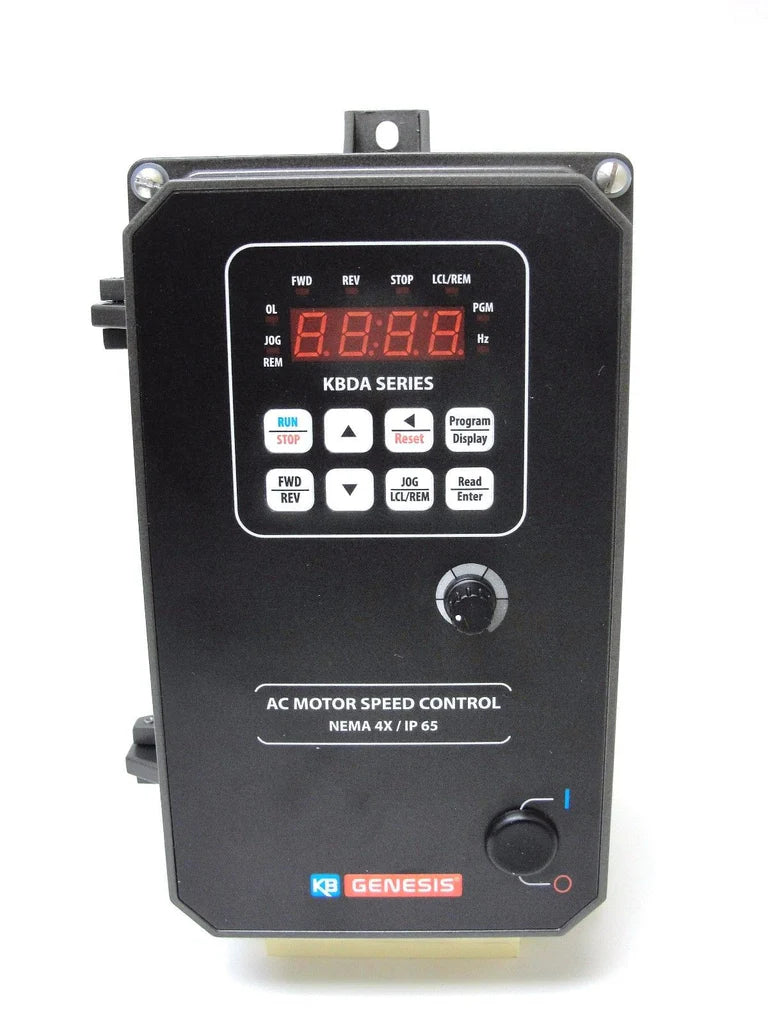

KB Electronics 1/8 - 1 HP KBDA-24D Variable Frequency Drive, Input 115/230V, Output 230 3P, #9536 Gray

KB Electronics KBDA-24D digital AC motor control 9536 UPC: 024822095365. Digital drive with digital interface.

Product Manual

KBDA-24D Digital Drive with CSP*
Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.

Primary Features:
Horsepower 1/8 to 1 HP
1Ø Input 115/230 VAC, 50/60 Hz
3Ø Output 230 VAC
Powerful 200% Starting Torque
Digital Display with LED Status Indicators

Additional Features:
Sensorless Flux Vector Control
Electronic Inrush Current Limit (EICLTM) Protection
Run/Fault Relay Output Contacts
Jog-Local Remote
Built-in Potentiometer
Holding Torque at Zero Speed in "Stop" mode
Undervoltage and Overvoltage Protection
Short Circuit Protection, phase to phase
Ride-Through momentary power loss
Regeneration eliminates tripping

Dimensions approx. 9.5" X 5.5" X 5.9".
