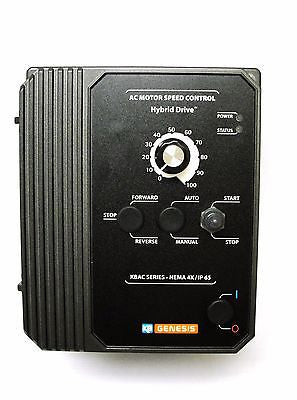

KB Electronics, 3/4 - 3 HP KBAC-45 Variable Frequency Drive, Input 460V 3P, Output 460V 3P, #9530

KB Electronics KBAC-45 Hybrid AC motor control (9530) UPC: 024822095303. This motor control features a digital drive with an analog interface.

Product Manual


Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.


Primary Features:
Horsepower 3/4 to 3 HP, Jumper Selectable
3Ø Input 460 VAC, 50/60 Hz
3Ø Output 460 VAC
Start/Stop Switch
Powerful 200% Starting Torque
Diagnostic LED Status Indicators

Additional Features:
Sensorless Flux Vector Control
Electronic Inrush Current Limit (EICLTM) Protection
Run/Fault Relay Output Contacts
Holding Torque at Zero Speed in "Stop" mode
Undervoltage and Overvoltage Protection
Short Circuit Protection, phase to phase
Ride-Through momentary power loss
Regeneration eliminates tripping
Basic, Programmable, Trimpot Adjustments

Dimensions approx. 9.8" X 7.6" X 7.3".
