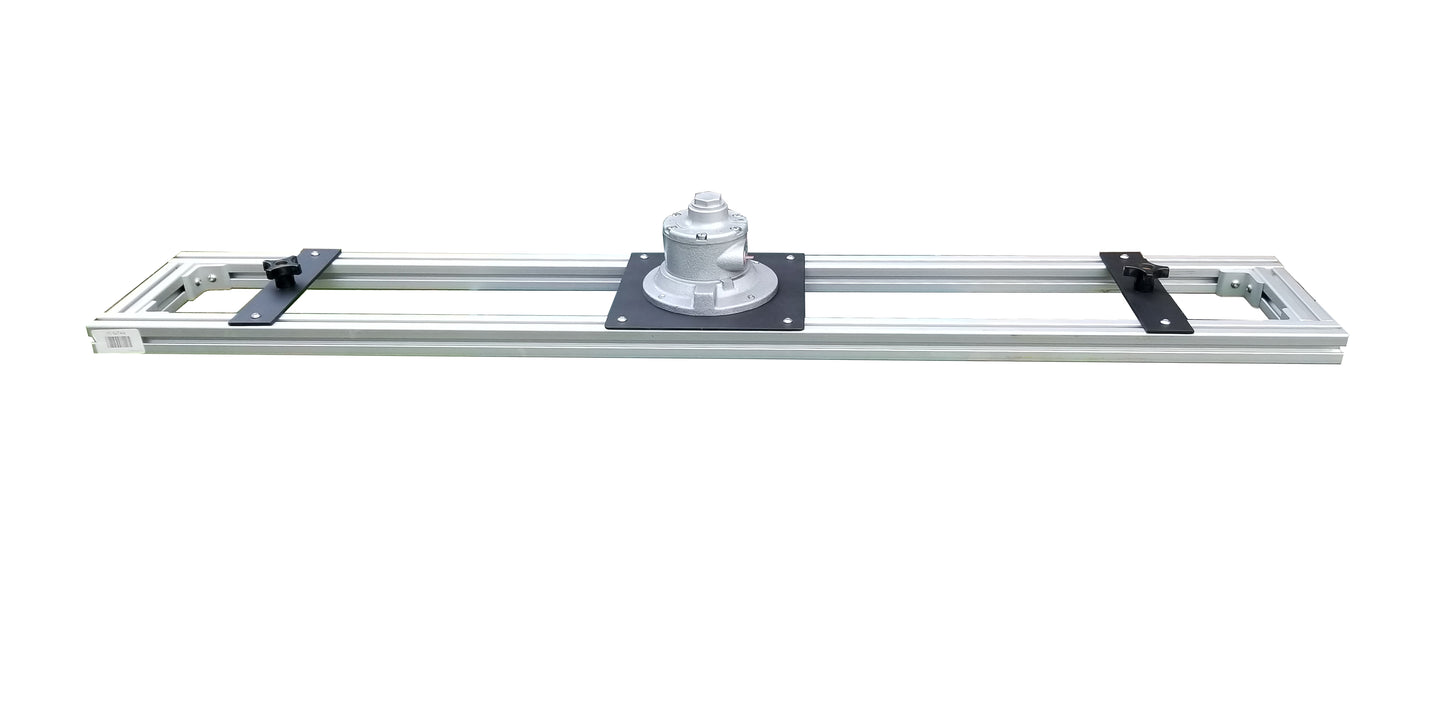

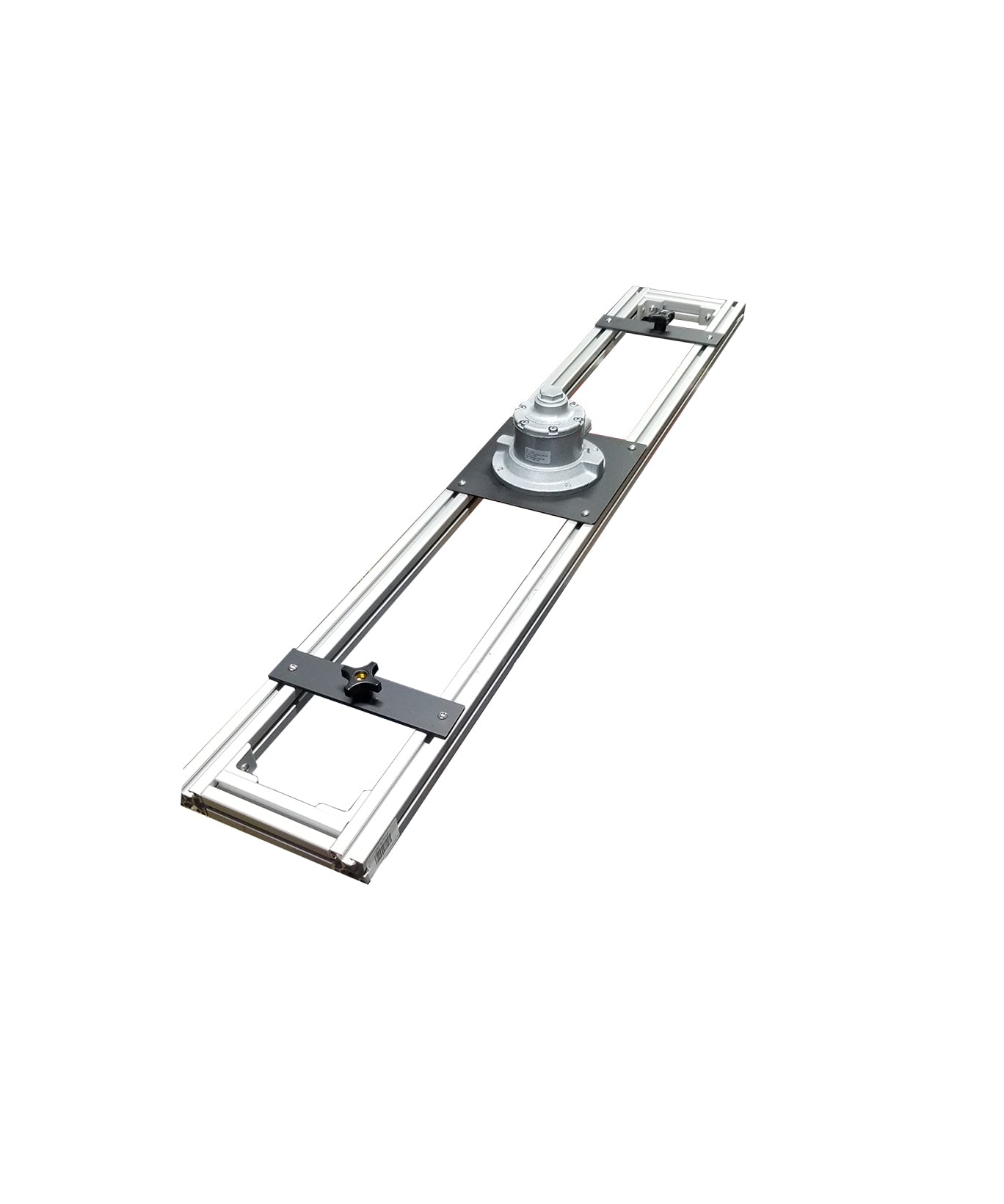

Bridge Mount, Air Driven 1.7 HP Direct Drive IBC Tote Mixer #ADDBM1.7
Bridge Mount, Air Driven 1.7 HP Direct Drive IBC Tote Mixer #ADDBM1.7
Light weight but heavy duty direct drive air driven mixer. Designed for mixing low to medium viscosity fluids. Constructed of rigid aluminum and carbon steel. High quality American made Gast 4AM series pneumatically driven air motor producing 1.7 HP, 56 in-lb torque. Includes 30"X5/8" stainless steel mixing shaft and 5" stainless steel mixing propeller, inline oilier, air flow valve and exhaust muffler. Can be used within an explosion proof environment.
Select Options Below:
- Forklift Pockets
Motor Specs.
Max Air Consumption: 78 cfm ( 132.52 m3h )
Max Power: 1.7 hp ( 1.27 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 87 dB(A)
Max Speed: 3000 rpm
Max Torque: 56 in-lb ( 6.33 N m )
Port Size 1/4" NPT
Unit Weight: 23 Lbs.
