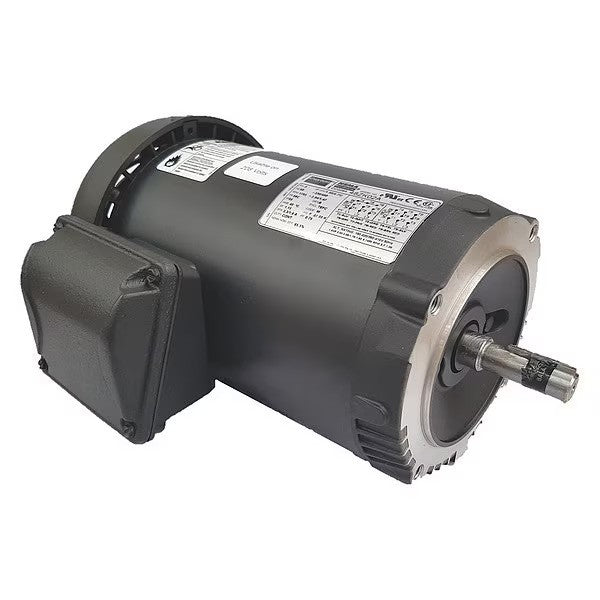

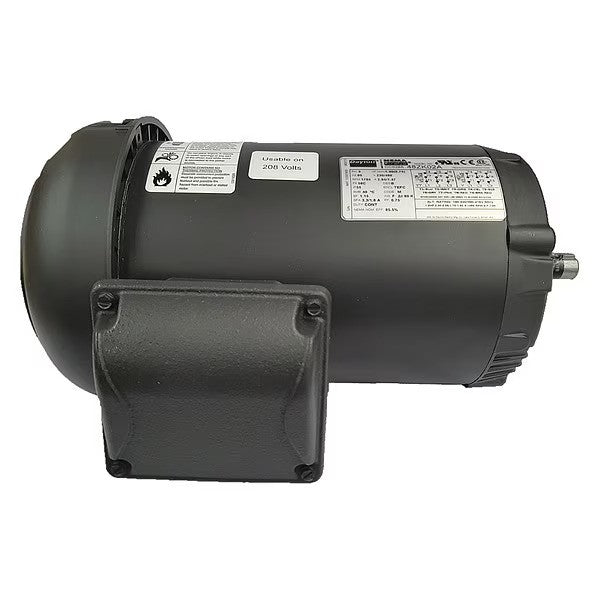

1 HP, 56C Frame, 230/460V AC Voltage, 1,765 Nameplate RPM Mfr #48ZK02

Shaft Length 1 7/8 in
Length Less Shaft 11 13/16 in
Overall Length 13 7/8 in
Manufacturers Warranty Length 2 yr
Shaft Dia. 5/8 in

Item General Purpose Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Face
HP 1
RPM Range 1,701-1,800
Voltage 230/460V AC
Frame 56C
Motor Thermal Protection None
Motor Service Factor 1.15
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application General Application
Motor Sub Application Aeration Fan
Motor Design 3-Phase
Nameplate RPM 1,765
Motor Shaft Rotation CW/CCW
Motor Mounting Position All Angle
Motor Frame Material Rolled Steel
Motor Shaft Design Keyed
Standards CE, CSA, UL
Ins. Class F
Motor Bearings Ball
Phase Three
Full Load Amps 2.94/1.47 A
CC Number CC029A
Inverter Rated Yes
Duty Continuous
Frame Material Rolled steel
RPM Group 1701-1800
Nominal Efficiency 85.5 %
Max. Ambient Temp. 104 Degrees F
Hz 60 Hz
Motor Efficiency Group NEMA Premium Efficient
No. of Speeds 1
Duty Cycle Continuous
